Catalyst 4500E Supervisor
产品说明

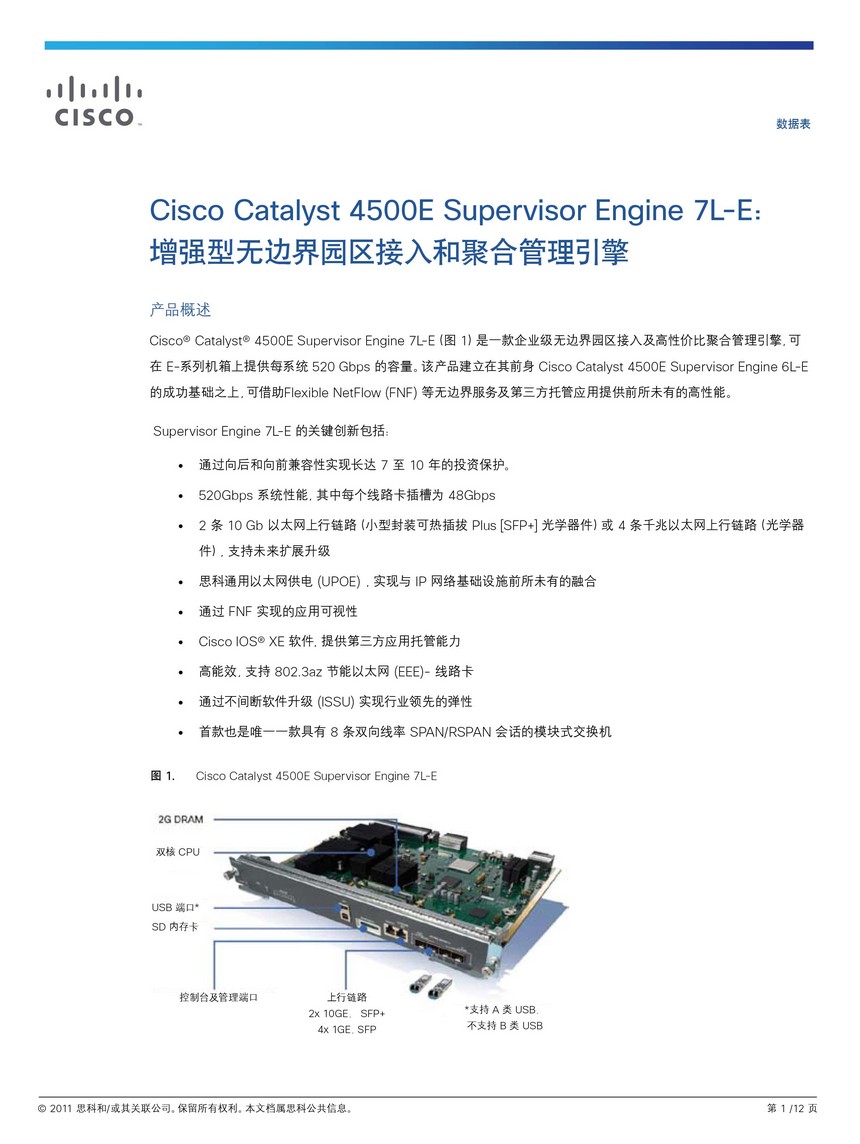

Cisco®Catalyst®4500ESupervisorEngine7L-E是一款企业级无边界园区接入及高性价比聚合管理引擎，可在E-系列机箱上提供每系统520Gbps的容量。该产品建立在其前身CiscoCatalyst4500ESupervisorEngine6L-E的成功基础之上，可借助FlexibleNetFlow(FNF)等无边界服务及第三方托管应用提供前所未有的高性能。
产品参数
Cisco Catalyst 4500-E Switch Model ComparisonsModel | Catalyst 4510R+E Switch | Catalyst 4507R+E Switch | Catalyst 4510R-E Switch | Catalyst 4507R-E Switch | Catalyst 4506-E Switch | Catalyst 4503-E Switch | | 3D Model Available | View | View | View | View | View | View | | Total Slots | 10 | 7 | 10 | 7 | 6 | 3 |
|
|
|
|
|
|
| Supervisors | Catalyst 4510R+E Switch | Catalyst 4507R+E Switch | Catalyst 4510R-E Switch | Catalyst 4507R-E Switch | Catalyst 4506-E Switch | Catalyst 4503-E Switch | | Supervisor 8-E | Supported | Supported | Supported | Supported | Supported | Supported | | Supervisor 8L-E |
| Supported |
| Supported | Supported | Supported | | Supervisor 7-E | Supported | Supported | Supported | Supported | Supported | Supported | | Supervisor 7-LE |
| Supported |
| Supported | Supported | Supported | | Supervisor 6E | Supported | Supported | Supported | Supported | Supported | Supported | | Supervisor 6-LE | - | Supported | - | Supported | Supported | Supported | | Supervisor V-10 GE | Supported | | Supervisor Engine Slot Number | 5, 6 | 3,4 | 5, 6 | 3, 4 | 1 | 1 | | Supervisor Engine Redundancy | Yes | Yes | Yes | Yes | No | No |
|
|
|
|
|
|
| Line Cards | Catalyst 4510R+E Switch | Catalyst 4507R+E Switch | Catalyst 4510R-E Switch | Catalyst 4507R-E Switch | Catalyst 4506-E Switch | Catalyst 4503-E Switch | | Line Card Slots | 8 | 5 | 8 | 5 | 5 | 2 | | Line Card Support | E-Series (requires E-Series chassis) and classic | | Line Card Slot Speed | 48 Gbps, 24 Gbps, and 6 Gbps | 48 Gbps, 24 Gbps, and 6 Gbps | 24 Gbps and 6 Gbps | 24 Gbps and 6 Gbps | 48 Gbps, 24 Gbps, and 6 Gbps | 48 Gpbs, 24 Gbps, and 6 Gbps |
|
|
|
|
|
|
| Power | Catalyst 4510R+E Switch | Catalyst 4507R+E Switch | Catalyst 4510R-E Switch | Catalyst 4507R-E Switch | Catalyst 4506-E Switch | Catalyst 4503-E Switch | | Power Supply Bays | 2 | | AC Input | Yes | | DC Input | Yes | | Integrated Power over Ethernet (PoE) | Yes | | PoE Plus (PoEP) | Yes | | Universal PoE (UPOE) | Yes | | Minimum Number of Power Supplies | 1 | | Fan Tray Bays | 1 | Mount | Catalyst 4510R+E Switch | Catalyst 4507R+E Switch | Catalyst 4510R-E Switch | Catalyst 4507R-E Switch | Catalyst 4506-E Switch | Catalyst 4503-E Switch | | Location of 19-inch Rack-Mount | Front | | Location of 23-inch Rack-Mount | Front (option) |
Supervisor engine slots do not support switching line-card modules.
Line-card slots do not support supervisor engines." Cisco Catalyst 4500 Switch Model ComparisonModel | Catalyst 4510R Switch | Catalyst 4507R Switch | Catalyst 4506 Switch | Catalyst 4503 Switch | | Total Slots | 10 | 7 | 6 | 3 | | Supervisor Engine Slots | 22 | 22 | 11 | 11 | | Line Card Slot Speed | 6 Gbps | 6 Gbps | 6 Gbps | 6 Gbps | | Supervisor Engine Redundancy | Yes (Supervisor Engine 6-E,V-10GE, V) | Yes (Supervisor Engine 6-E, 6L-E, V-10GE, V, IV, II-Plus-10GE, II-Plus) | No | No | | Supervisor Engines Supported | Supervisor Engine 6-E,V-10GE, V | Supervisor Engine 6-E, 6L-E, V-10GE, V, IV, II-Plus-10GE, II-Plus | Supervisor Engine 6-E, 6L-E, V-10GE, V, IV, II-Plus-10GE, II-Plus | Supervisor Engine 6-E, 6L-E, V-10GE, V, IV, II-Plus-10GE, II-Plus Engine II-Plus-TS | | Line Card Slots | 82 | 52 | 5 | 2 | | Power Supply Bays | 2 | 2 | 2 | 2 | | AC Input | Yes | Yes | Yes | Yes | | DC Input | Yes | Yes | Yes | Yes | | Integrated Power over Ethernet (PoE) | Yes | Yes | Yes | Yes | | Minimum Number of Power Supplies | 1 | 1 | 1 | 1 | | Fan Tray Bays | 1 | 1 | 1 | 1 | | Location of 19-inch Rack-Mount | Front | Front | Front | Front | | Location of 23-inch Rack-Mount | Front (option) | Front (option) | Front (option) | Front (option) |
|
|
